Harken
Harken 57mm Ratchet Swivel
Quantity:
Pickup available at HQ
Usually ready in 24 hours

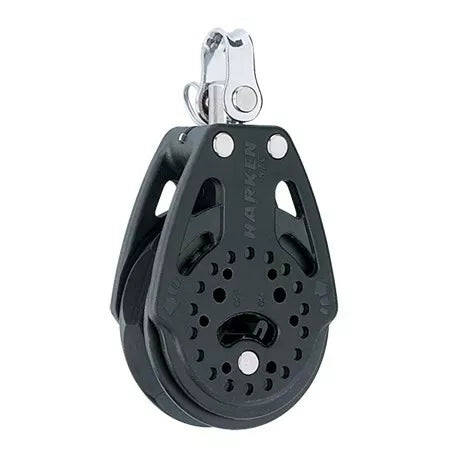

Harken 57mm Ratchet Swivel
HQ
Pickup available, usually ready in 24 hours
Tandkullegatan 17B
426 79 Västra Frölunda
Sweden
Carbo Ratchets allow sailors to hand-hold loaded lines and offer balance between holding power and controlled easing. On/off switch operates from both sides.
Standard grip: medium/light air; 10:1 holding power
Technical Details
| Sheave Ø (mm) | 57 mm |
| Sheave Ø (in) | 2 1/4 in |
| Length (mm) | 103 mm |
| Length (in) | 4 1/16 in |
| Weight (g) | 85 g |
| Weight (oz) | 3 oz |
| Shackle pin Ø (mm) | 5 mm |
| Shackle pin Ø (in) | 3/16 in |
| Maximum line Ø (mm) | 10 mm |
| Maximum line Ø (in) | 3/8 in |
| Maximum working load (kg) | 227 kg |
| Maximum working load (lb) | 500 lb |
| Breaking load (kg) | 907 kg |
| Breaking load (lb) | 2000 lb |
| Holding power | 10:1 |
