Harken
Harken 16mm Block
Quantity:
Pickup available at HQ
Usually ready in 24 hours
Harken 16mm Block
HQ
Pickup available, usually ready in 24 hours
Tandkullegatan 17B
426 79 Västra Frölunda
Sweden

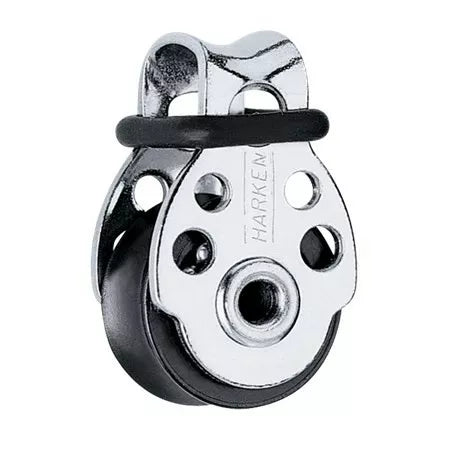

The 16 mm is Harken’s smallest block. It is perfect for small synthetic control lines found on high-tech dinghies.
The patented bearing system uses stainless steel balls in a captive grooved race and has a 250 lb (113 kg) maximum working load.
The 404 uses an O-ring to keep the line in the sheave during intermittent loading.
Part Number: 404
Technical Details
| Sheave Ø (mm) | 16 mm |
| Sheave Ø (in) | 5/8 in |
| Length (mm) | 29 mm |
| Length (in) | 1 1/8 in |
| Weight (g) | 10 g |
| Weight (oz) | .33 oz |
| Maximum line Ø (mm) | 5 mm |
| Maximum line Ø (in) | 7/32 in |
| Maximum working load (kg) | 113 kg |
| Maximum working load (lb) | 250 lb |
| Breaking load (kg) | 544 kg |
| Breaking load (lb) | 1200 lb |
