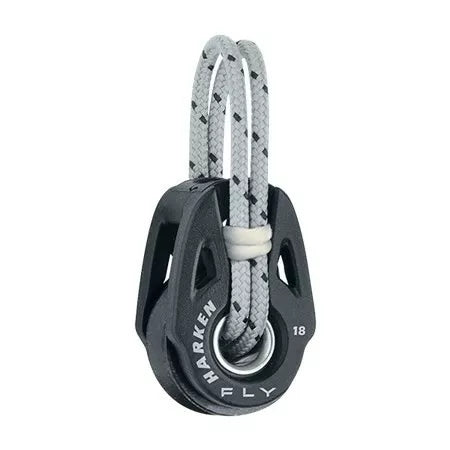

Harken 18mm Fly Block Single Narrow
Harken 18mm Fly Block Single Narrow
HQ
Tandkullegatan 17B
426 79 Västra Frölunda
Sweden
Harken soft-attach Fly blocks are designed to provide strength without mass, providing sailors with big power in a low-aero package.
Designed specifically for high-tech line, these efficient blocks have an incredible working load for their small size. Fly blocks are perfect for use on foiling dinghies and sportboats and for vang cascades and backstay systems on Grand-Prix racers.
The 18mm blocks feature an integrated stainless steel inner race and rivet, stainless steel ball bearings, and composite fiber-reinforced sideplates. Use the 2161 “tight cinching” 18 mm in applications where the block needs to be secured extremely close to the deck.
Technical Details
Sheave Ø (mm) | 18 mm |
Sheave Ø (in) | 23/32 in |
Length (mm) | 28 mm |
Length (in) | 1 3/32 in |
Weight (g) | 7.2 g |
Weight (oz) | .25 oz |
Maximum line Ø (mm) | 5 mm |
Maximum line Ø (in) | 3/16 in |
Maximum working load (kg) | 125 kg |
Maximum working load (lb) | 275 lb |
Breaking load (lb) | 992 lb |
Breaking load (kg) | 450 kg |
