Harken

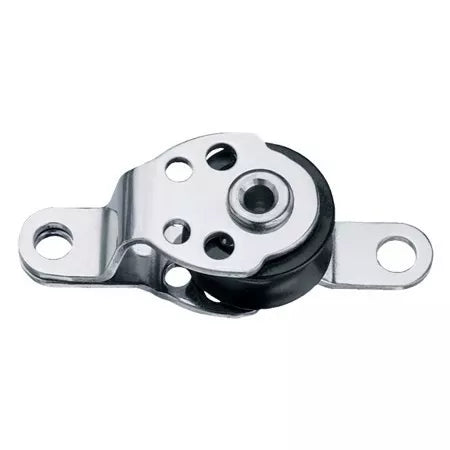

Harken 16mm Cheek Block
Quantity:
Pickup available at HQ
Usually ready in 24 hours
Harken 16mm Cheek Block
HQ
Pickup available, usually ready in 24 hours
Tandkullegatan 17B
426 79 Västra Frölunda
Sweden
The 16 mm is Harken’s smallest block. It is perfect for small synthetic control lines found on high-tech dinghies.
The patented bearing system uses stainless steel balls in a captive grooved race and has a 250 lb (113 kg) maximum working load.
Part Number: 416
Technical Details:
| Sheave Ø (mm) | 16 mm |
| Sheave Ø (in) | 5/8 in |
| Length (mm) | 46 mm |
| Length (in) | 1 13/16 in |
| Weight (g) | 12 g |
| Weight (oz) | .44 oz |
| Maximum line Ø (mm) | 5 mm |
| Maximum line Ø (in) | 7/32 in |
| Fasteners (mm) | 4 RH mm |
| Fasteners (in) | #8 RH in |
| Maximum working load (kg) | 113 kg |
| Maximum working load (lb) | 250 lb |
| Breaking load (kg) | 544 kg |
| Breaking load (lb) | 1200 lb |
